Astral Drain Hulk

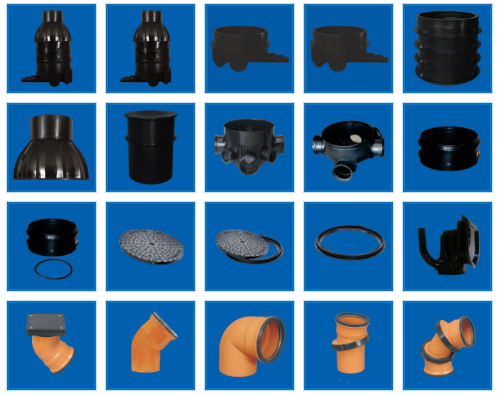

ASTRAL manhole chambers are made of 100% virgin UV stabilized polyethylene (PE) material and are intended for use in underground drainage and sewerage systems. Innovative industrial strength design based on almost 20 years of German/European experience incorporates carefully designed ribs to provide extra strength to the product and at the same time act as an uplift prevention system against ground water. ASTRAL manholes have been installed in extremely challenging site conditions such as high ground water level. ASTRAL chambers are suitable for both on-road and off-road installations.

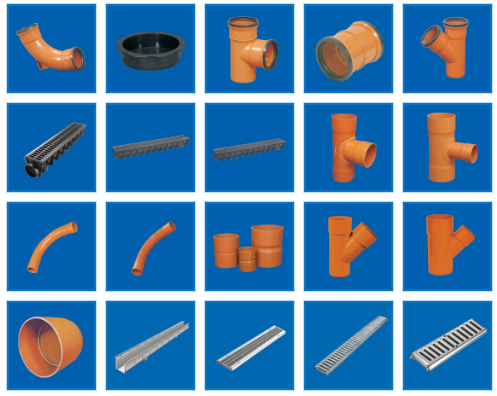

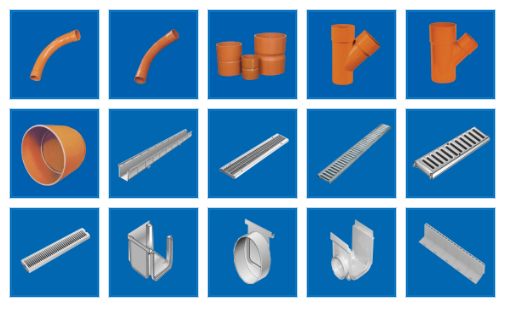

Fittings

Adhesives

ASTRAL UNDERGROUND INSPECTION CHAMBER & MANHOLE INVERT DEPTH

SIZE OF CHAMBER& MANHOLE
HEIGHT
INLET
OUTLET
 500 MM DIA – 5 INLET 500MM 110/160 110/160
750MM
 1000MM
 600 MM DIA – 5 INLET 500MM  110/160  110/160
750MM
1000MM
1250MM
2000MM
600 MM DIA – 3 INLET 500MM 160/200/250 160/200/250
750MM
1000MM
1250MM
2000MM
800 MM DIA – 5 INLET 1000MM 110/160 110/160
1250MM
1500MM
800 MM DIA – 3 INLET 1250MM 160/200/250 160/200/250
1500MM
1750MM
1000 MM DIA – 5 INLET 1250MM 160/200/250 160/200/250
1500MM
1750MM
1000 MM DIA – 3 INLET 1250MM 200/250/315 200/250/315
1500MM
1750MM

1000 MM DIA MANHOLE MODULAR

HEIGHT INLET OUTLET
BASE UNIT – 3 INLET 650MM 200/250/315 200/250/315
BASE UNIT – 5 INLET 650MM 110/160/200 110/160/200
RAISER UNIT 500MM INVERT DEPTH=BASE+RAISER+UPPER UNIT
750MM
1000MM
UPPER UNIT 1100MM
1350MM
1600MM
  • Most durable and impact resistant
  • Light in weight, easy to handle and quick to install.
  • Smooth fore pipe with longer internals between joints reduces the risk of blockage and improves flow.
  • A full range of underground drainage, sewer and associated drainage products.
  • Easy to install even in wet condition.
